XAG APC2 AutoPilot Console is the automated steering solution built for your hands-free operation on farm. It enables a wide range of agricultural machinery, such as tractors and harvesters, to operate with centimeter-level accuracy.
Explore Two Distinct Options To Match Your Operational Needs

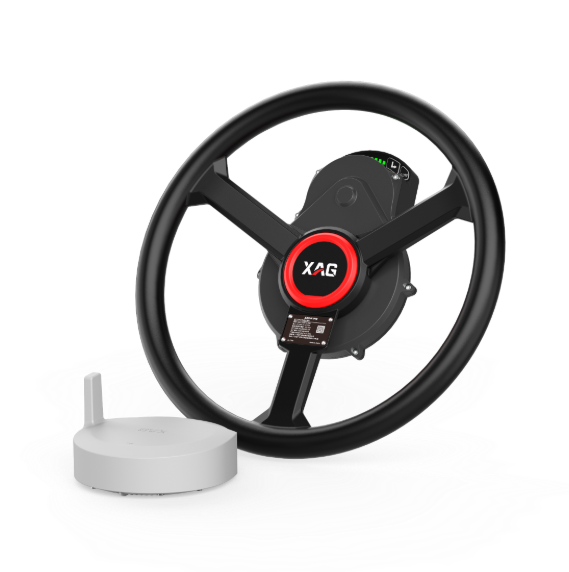

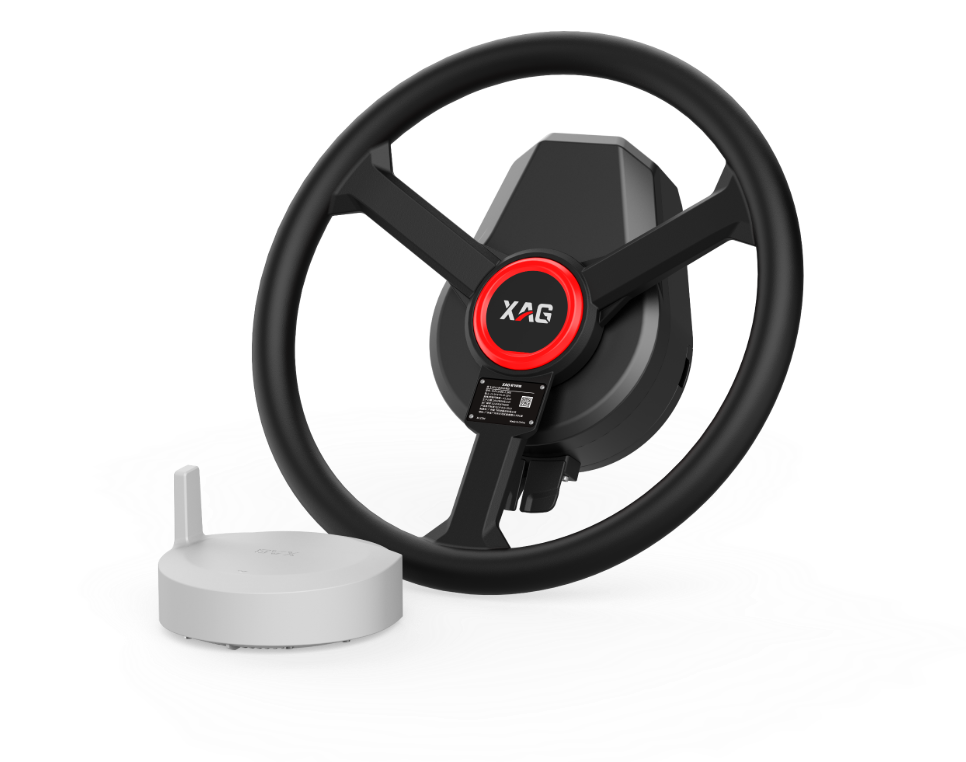

XAG APC2 AutoPoilot Console

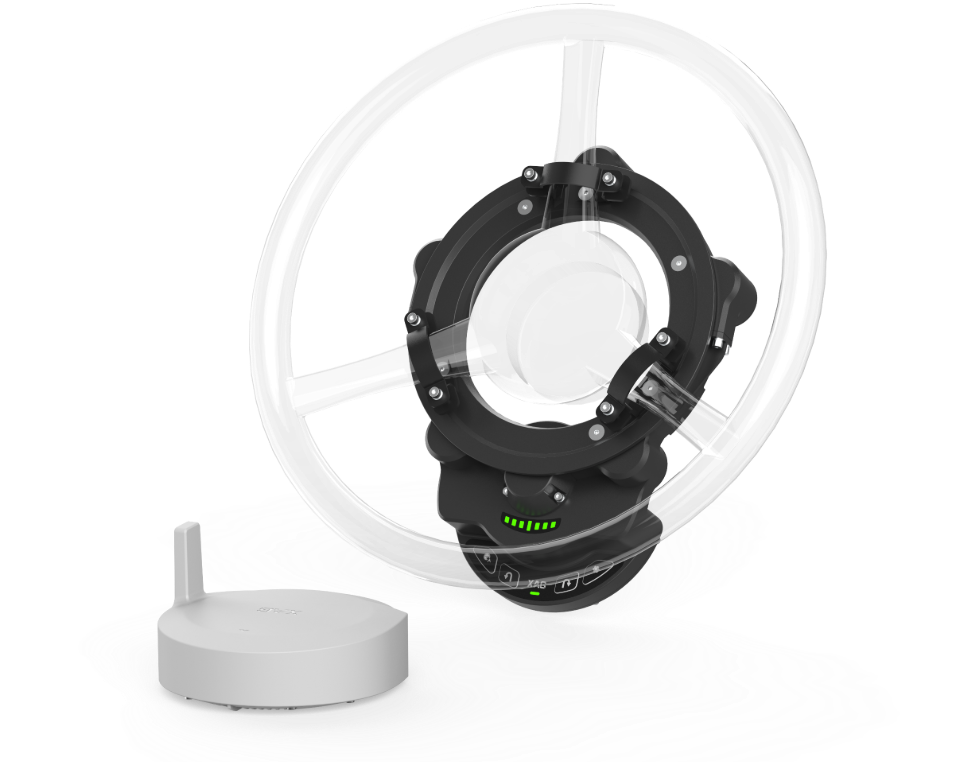

XAG APC2 Flex AutoPoilot Console
All-in-One Design, Easy Installation
The XAG Autopilot Console is designed to help farmers work smarter and achieve more. It consists of a highly integrated mainframe and an automated steering wheel or motor drive connected by a single cable, enabling hassle-free installation and low maintenance. This is an all-in-one solution that allows smartphone control and easy upgrades for enhanced functionality.
Mainframe
Include RTK antennas, sensors and processors into one, compact but complete
APC2
Automated Steering Wheel
Minimal maintenance required, only after 1,000 hours of use 1
User-friendly paddle shifter controls
APC2 Flex
Steering Motor Drive
Keep original steering wheel intact
Convenient steering-mounted controls
Quick-install compact design
XAG Autopilot App
Take control of your farm machine with just a smartphone, automatic route planning and OTA upgrades supported
Centimeter-Level Precision for Improved Productivity
Based on RTK navigation technology, the XAG APC2 can enable field operation with ±2.5 cm accuracy. It is an ideal option for high-precision tasks to maximize land use while reducing input cost on fuel, fertilizer and chemicals. Terrain compensation, using the IMU inertial sensors, detects the slope of the terrain and ensures your farming vehicle stay precise on rough ground.
  • Maize & Soybean Relay Intercropping
  • Rice Transplanting
  • Furrowing
  • Ridging
Smart Route Planning in Just a Few Clicks
XAG Autopilot App offers multiple guidance line modes and handy features to match your farming needs. This allows the operator to conquer diverse terrain types and field shapes with ease and precision. Over-the-air updates can add greater functionality with the touch of a button on smartphone.
AB Straight Line
AB Curve
AB Equidistant Curve
Drill Seeding
Diagonal Harrowing
Operation Made Simpler with One-click U-turn
Guide your farming vehicles to turn around smoothly and proceed to the next route without human control. Simplify repetitive tasks and reduce operator fatigue in the field.
  • Smart U-turn
  • Interlaced U-turn
Different Options for Easy Control
Provide more flexibility in control depending on your usage preferences.
Paddle Shifters
Built into the automated steering wheel, it enables start/stop and turnaround simply with a flick of your finger.
* For APC2 only
Deviation Guidance Lightbar
This indicator on the motor drive provides real-time visual feedback to show whether the machine is on course or drifting left/right. Working in sync with RTK/PPP positioning, it helps operators stay precisely aligned throughout each operation.
* For APC2 Flex only
Steering-Mounted Controls
4 steering-wheel buttons for quick-access controls, allowing you to operate key functions, such start/stop, U-turn, point marking, AB straight line and AB curve, etc. directly without switching to a smartphone.
* For APC2 Flex only
XAG WCP1 Wireless Control Panel
Works as an alternative user-friendly tool when your phone is occupied or out of reach.
Automatic Path Creation on Digital Map
Generate optimal paths automatically for high-accuracy steering in any field types. The field information can be shared with XAG Agricultural Drone working in the same areas, which creates a connected farming experience for all.
Mark Your Waypoints in Your Way
  • With Farm Machinery
    Drive your vehicle along the field edge, and mark the AB straight line or record a curve. The App will automatically generate multiple routes after parameter setting.
  • With Mobile Station
    Use the XAG XRTK7 Mobile Station to mark points along the field boundaries. Click on "Auto-Close" in the App to generate routes automatically
  • With HD Field Maps
    Map the fields with XAG Remote Sensing Drone or RealTerra. Import HD field maps into the App, mark the points and generate routes.
No Network? This Solution Has You Covered
The XAG XRTK7 Mobile Station serves as a portable RTK station, paired with the XRE1 Range Extender to extend a 2 km communication range. The setup enables the machinery to maintain ±2.5 cm positioning accuracy without relying on a CORS network.
  • XRTK7 Mobile Station
  • XRE1 Range Extender
Support Various Correction Signals
  • Network RTK (CORS)
    Reach ±2.5 cm positioning accuracy with stable internet connection. Share smart agriculture ecosystem with other XAG product lines.
    *Support XAG Cloud RTK and the third-party base, a continuously operating reference station (CORS)
  • Precise Point Positioning (PPP) Technology
    Guarantee decimeter-level accuracy via GNSS satellites without a local base station or internet coverage.
  • RTK Mobile Base Station
    Provide real-time centimeter-level positioning within the cover range of the base station. Easy and quick to set up.
Highly Versatile to Reap Profits All-Year Round
XAG APC2 Autopilot Console can be mounted on a wide range of agricultural equipment brands and models to accommodate different types of crops.
Suitable for Precision Farming Scenarios
Paddy Field
Dry Field
Mountain Terrain
Compatible with Most Farm Machinery
Rice Transplantor
Tractor
Sprayer
Choose your Model
  • Function
    Hassle-free Installation
    ±2.5 cm Accuracy
    Advanced Guidance Lines
    RTK & PPP Positioning
    Smartphone Control
    Over-the-Air Update
    Quick-access Control
    Spline Connection
    Steering Wheel Removal
  • XAG APC2 AutoPoilot Console
    Paddle shifters
  • XAG APC2 Flex AutoPoilot Console
    Steering-mounted controls
Optional Accessories

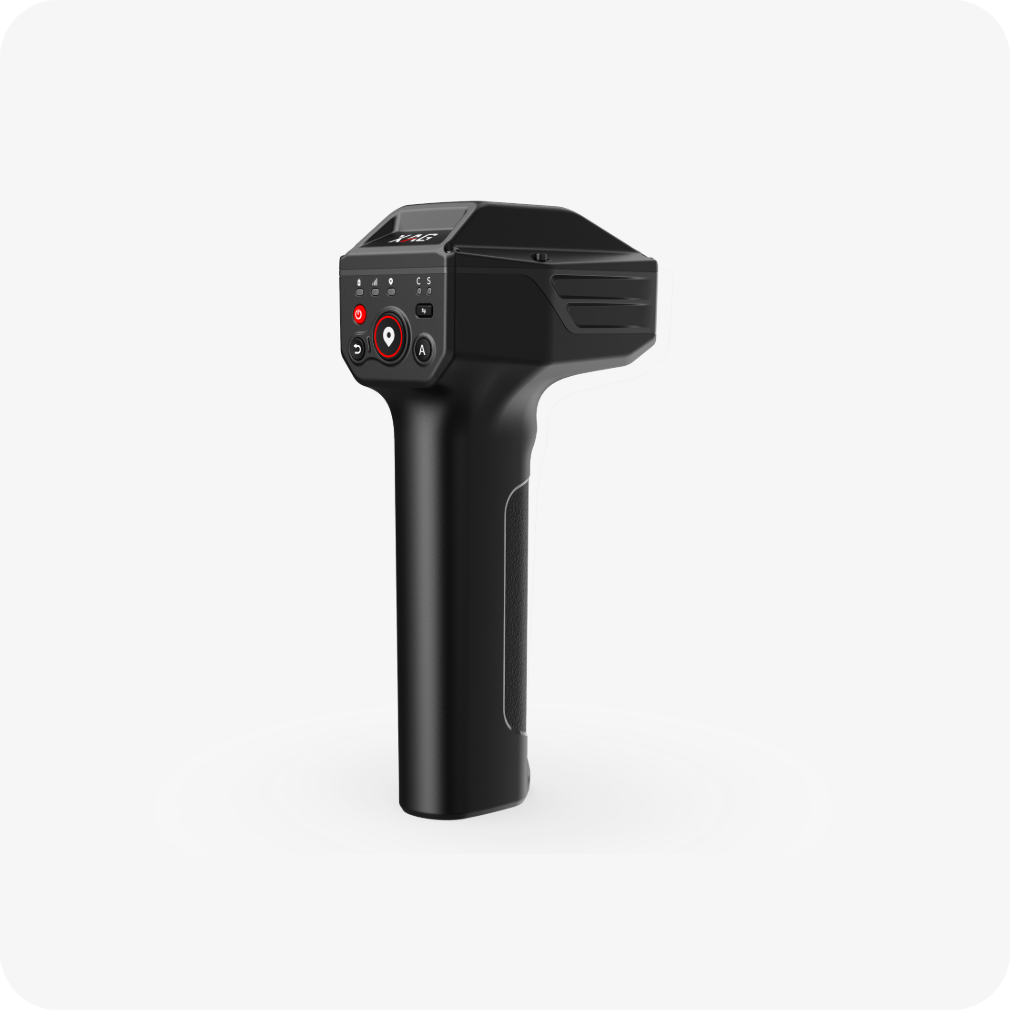

XAG XRTK7 Mobile Station
A portable RTK base station delivering centimeter-level accuracy when tripod-mounted. It also functions as a handheld device for field mapping.

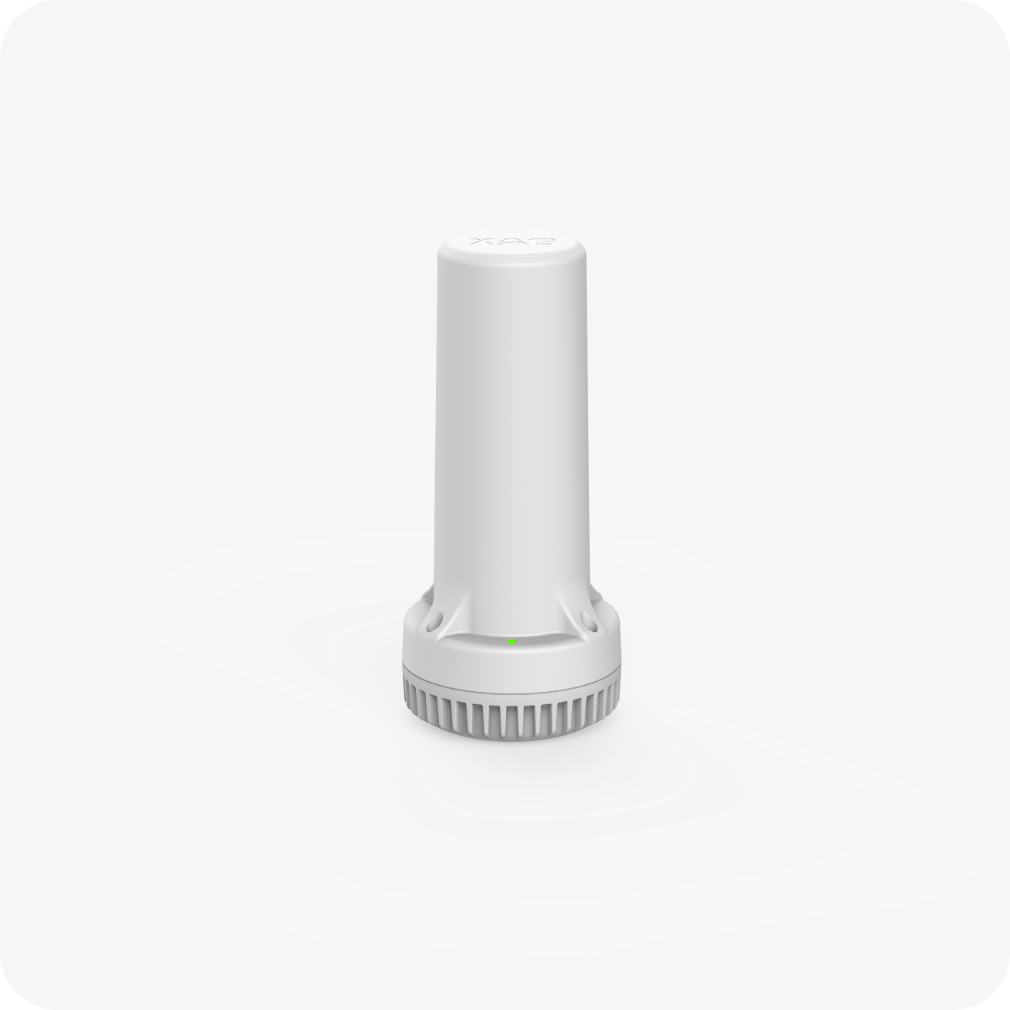

XAG XRE1 Range Extender
An add-on module paired with the XRTK7 Mobile Base Station that extends wireless communication up to 2 km, enabling operation in areas without access to CORS network.
XAG WCP1 Wireless Control Panel
A lightweight and compact device that has simple and intuitive interface. Connect through bluetooth, high flexibility in control.
XAG APC2 Transplanter Autopilot Kit²
Enable hands-free gear shifting and steering, and support automatic up and down movement of the planting unit.
1. The data is obtained through laboratory measurements. Actual values may vary depending on the operating environment, usage habits, and routine maintenance measures.
2. This product is currently exclusively available in specific regions. Kindly reach out to your local distributor for further sales information.
